The set consists of: cutter and material feeder, automatic layers counter, rear cloth press, front cloth press rail with the cutter runner. Cloth press rails are 360cms long in standard what enables assembling on a table 335cms maximum wide or smaller. The width of the fabric is 330 cm.
The device cuts precisely and presses the material, cutting width and front rail lifting height can be adjusted, automatic or manual front rail lifting. You save material and labour cost.
Voltage 230 V, motor power 200W, cutting speed 12.000 rpm.

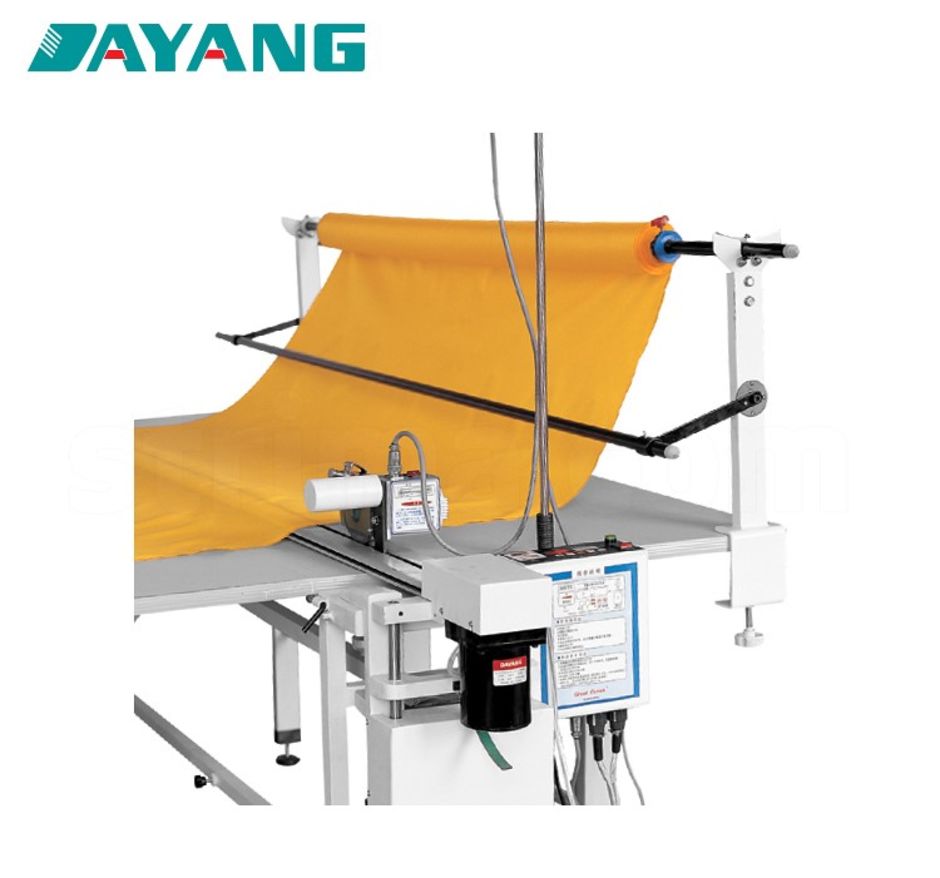

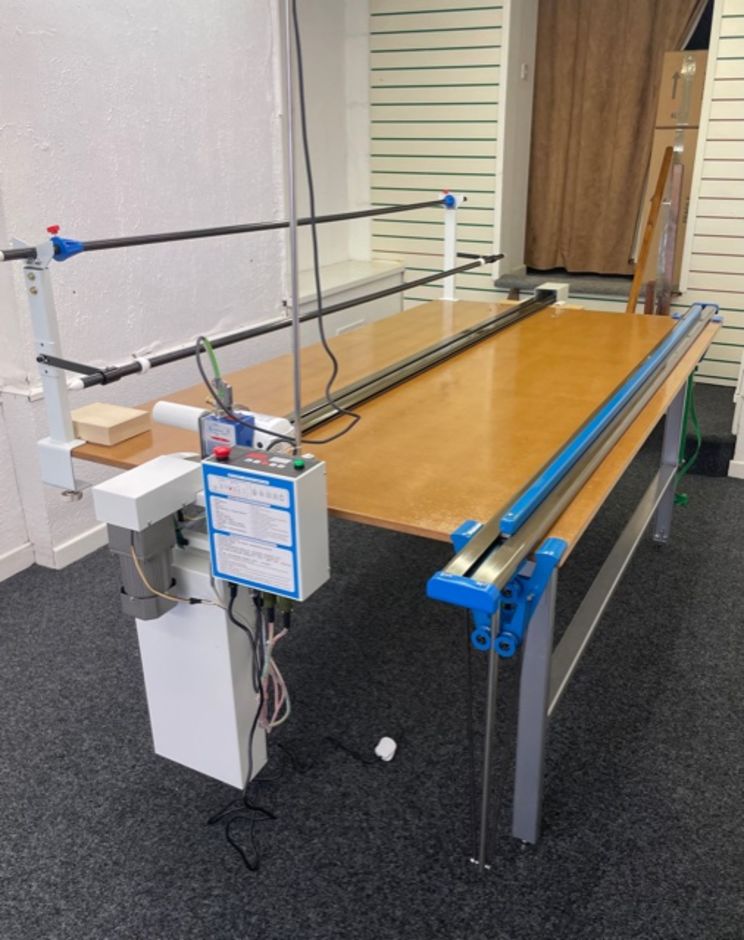

Dayang DYDB-2 (3.6M) manual lay end cutter
3.6 metre track
Fits tables up to 3.35 metres
Cuts fabric rolls up to 3.3mMaximum table top thickness - 60mm
The table must also have an overhang of 130mm where the track is to allow room for the lifting motor
Digital counter (counts each cut)
Cutting speed: 12000rpm
Includes lifting clamp at the cutting end PLUS lifting clamp at the other end
Cloth rail included
Please Note: Due to the length of lay end cutters our couriers will not deliver therefore lay end cutters are collection only. (If you live within 50 miles of BB2 2AJ we may be able to deliver in our own vans, please call for details).
